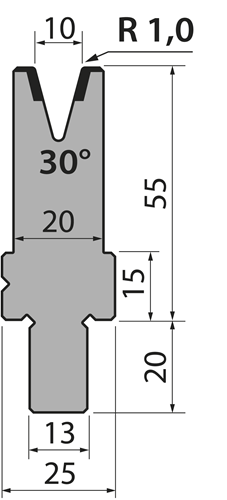

Name: BMR55.10.30
Brand: fbmtooling
SKU: BMR55.10.30
Availability: InStock
Rating: 5 (1 reviews)

Home > Wila-Trumpf Press Brake Tooling > Dies 30°

Description

Wila-Trumpf Press Brake Tooling
FBM is capable of meeting your needs. The following are the common types of Wila-Trumpf press brake tooling. If you don’t find what you are looking for, please feel free to contact us.

Advantages
●According to our rich experience in press brake tooling production, the following two kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
● 42CrMo, tempered to 1100 - 1200 N / mm2
● C45, tempered to 800 - 850 N / mm2
●The hardness of the bending radius and intake radius can achieve 45-50RC.
●The Wila-Trumpf press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling is compatible with the widest variety of press brakes machines.

Tang
All Dies Type Wila-Trumpf:
■All dies Type are by default equipped with a 13 x 20 mm tail.

Indications of precision ground surfaces:

Modification: Tang Bar
To use Amada dies, a 10 mm groove is milled where a ground bar is mounted.

For more specific information and prices go to the Modification Chapter.

Tool lengths and sectioning
Standard
Segmented tools are delivered in complete sets.
More lengths and sectioning are possible upon request.
Lengths without sectioning: 500 mm,515mm,525 mm,1000mm.

Lengths with sectioning:
■Sectioning FC 250 mm segmented (7 segments)

■Sectioning F 495 mm segmented (8 segments)

■Sectioning FW 550 mm segmented (8 segments)

■Sectioning 1100 mm segmented (12 segments)
