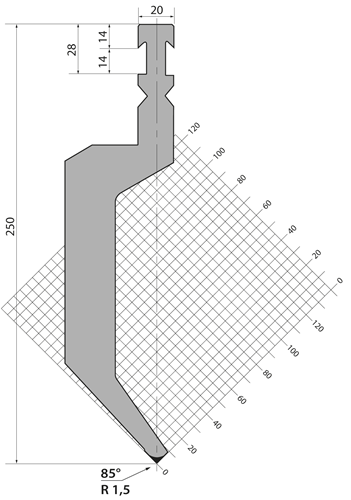

Name: BPR250.P4-RFA
Brand: fbmtooling
SKU: BPR250.P4-RFA
Availability: InStock
Rating: 5 (1 reviews)

Home > Bystronic-Beyeler Press Brake Tooling > Punches 85°

Description

Bystronic-Beyeler Press Brake Tooling
FBM is capable of meeting your needs. The following are the common types of Bystronic-Beyeler press brake tooling.which is compatible with press brake machines from Bystronic-Beyeler RFA, Bystronic-Beyeler RF, Bystronic-Beyeler R and Bystronic-Beyeler S, etc. If you don’t find what you are looking for, please feel free to contact us.

Advantages
●According to our rich experience in press brake tooling production, the following two kinds of optimum materials are recommended to satisfy your high-quality requirements. Other required materials can also be customized to fit your specific needs.
● 42CrMo, tempered to 1100 - 1200 N / mm2
● C45, tempered to 800 - 850 N / mm2
●The hardness of the bending radius and intake radius can achieve 45-50RC.
●The Bystronic-Beyeler press brake tooling features high universality. After the length or bend angle is being adjusted or working together with the adapters, the press brake tooling is compatible with the widest variety of press brakes machines.

Tang
All Punches Type Bystronic-Beyeler :


Bystronic-Beyeler RFA	Bystronic-Beyeler RF	Bystronic-Beyeler R	Bystronic-Beyeler S

Indications of precision ground surfaces:

Tool lengths and sectioning
Standard
Segmented tools are delivered in complete sets.
More lengths and sectioning are possible upon request.
Lengths without sectioning:1000 mm,500 mm,508 mm,525 mm
Lengths with sectioning:
■1100 mm segmented BP (13 segments)

■1100 mm segmented BPR (9 segments)

■495 mm segmented (8 segments)

Horn Types:


Horn 1 Standard BP for all segm. Punches BP	Horn 2 Standard BPR for all segm. Punches BPR	Individual production according to your specifications
